Value Proposition
- Reduces the intensity and burden of construction workers’ tasks, improving working conditions and providing a healthier, safer, and more comfortable working environment for builders.
- Enhances installation efficiency and significantly shortens construction cycles.

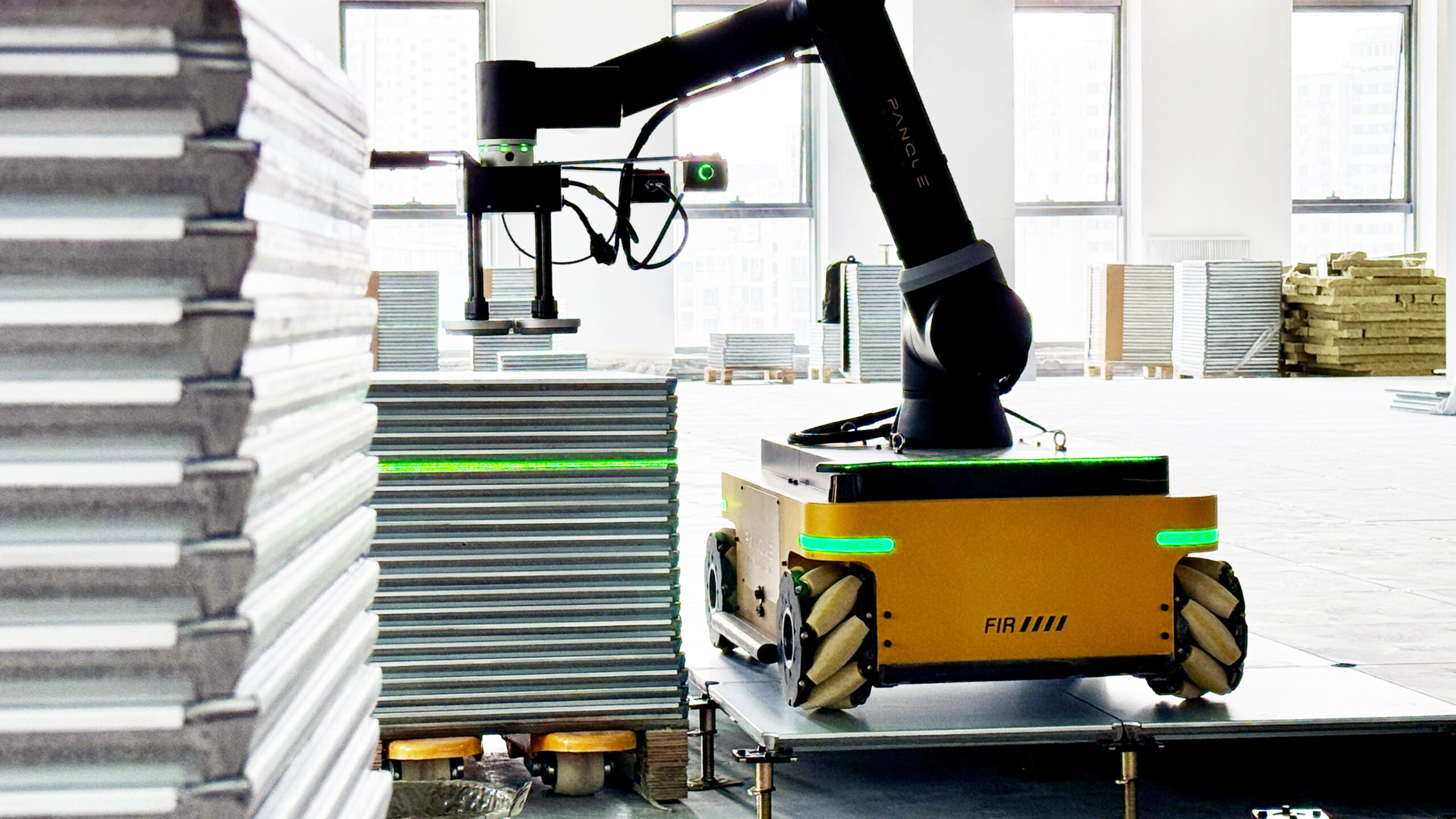

FIR Pro1 Human-machine Collaboration Solution

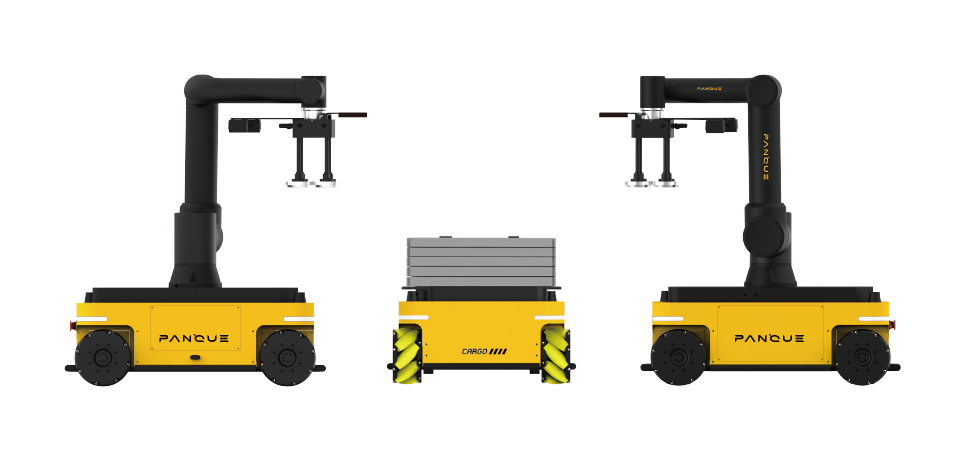

FIR Pro1+ STACKER Pro1+CARGO1*(1-n)
Advantages
Compatible with a variety of floor brands and support systems available in the market.
Automatic Leveling

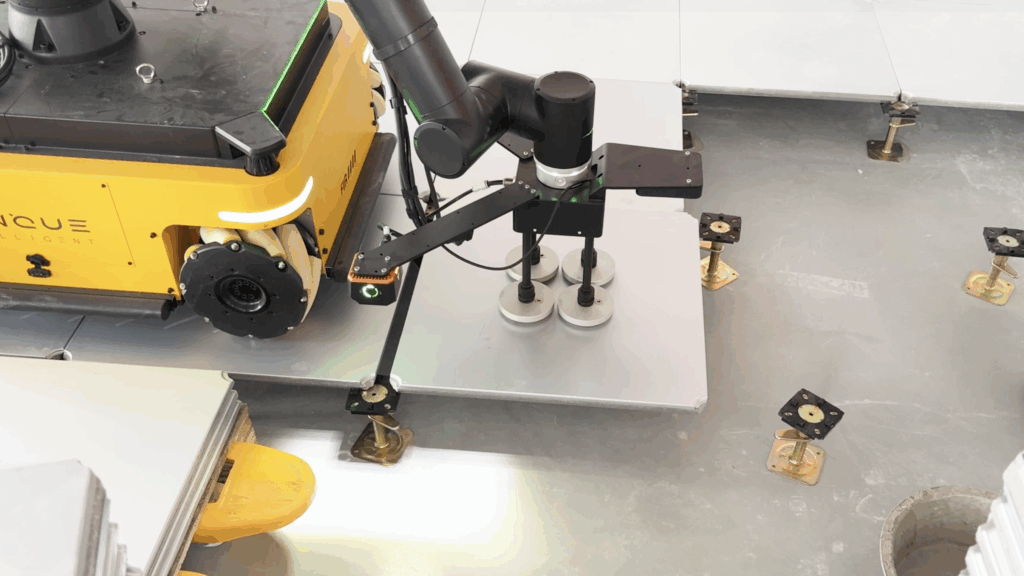

Robot tasks: Board handling, leveling, height adjustment, alignment, and placement.
User Friendly
Interactive – wearable devices (cell phones/PADs)
HRC

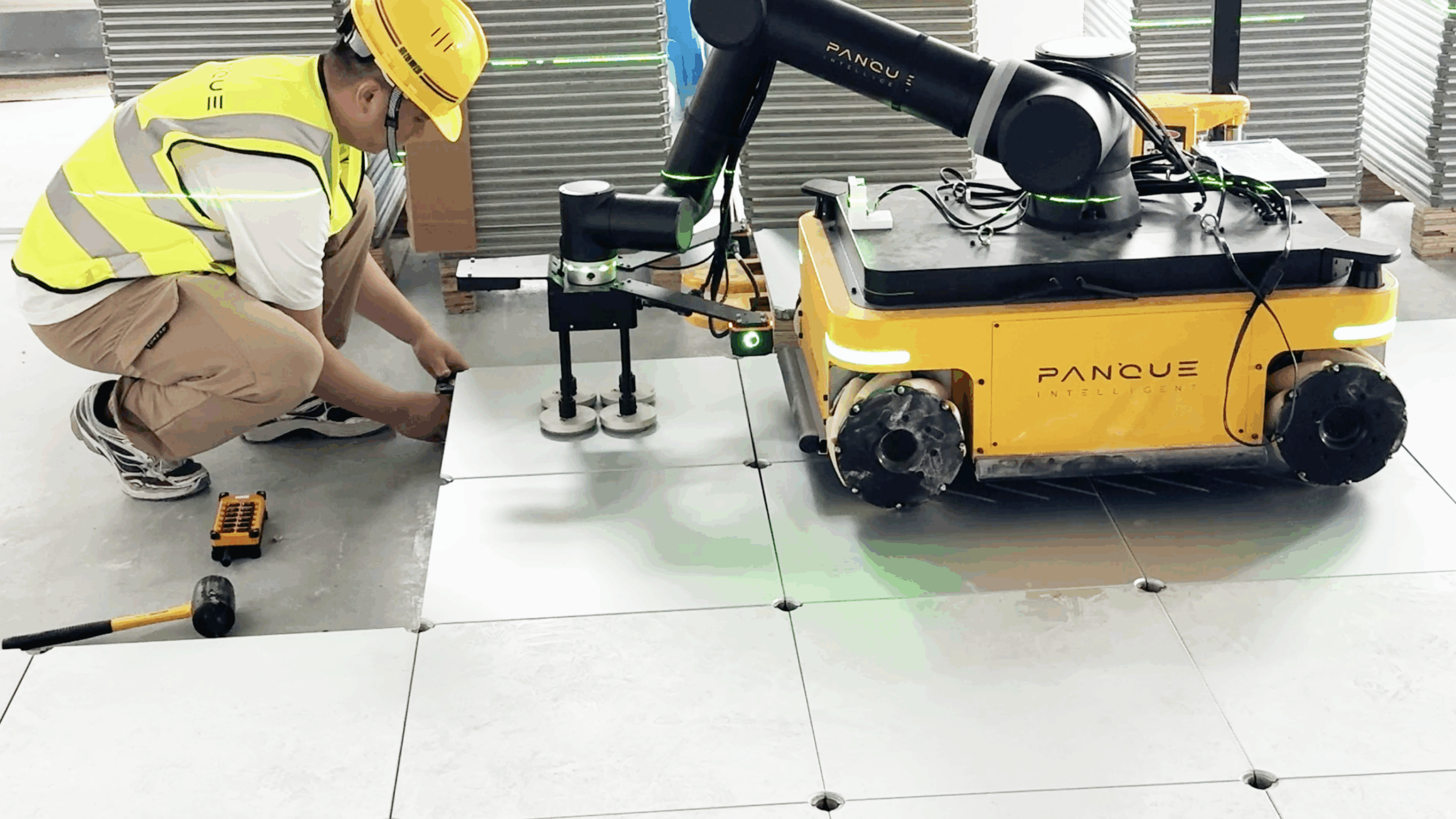

Human tasks: Placing supports and adjusting their height to fit the gap between the floor’s underside and the ground.

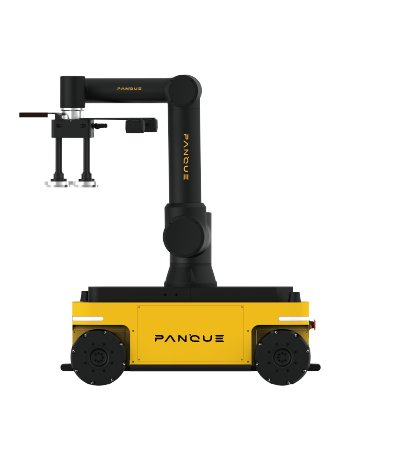

| Model | FIR Pro1 / STACKER |
|---|---|
| Dimensions | L:914mm, W:655mm, H:1100mm |
| Weight | 175kg |
| Arm | Six-DOF Robot Arm, Reach 1100mm, Max. 20kg |
| Mobility | Max. speed: 0.95m/s |
| Motion Ability | Climbing gradient ≤ 7° Ridges 80mm, Gaps 80mm |
| Power Supply | Voltage 48V, Battery duration 8 hours, Charging time ≤ 3 hours |
| Control Mode | Manual remote control Autonomous movement |
| Navigation | SLAM |
| Obstacle Avoidance | Dual LiDAR obstacle avoidance |
